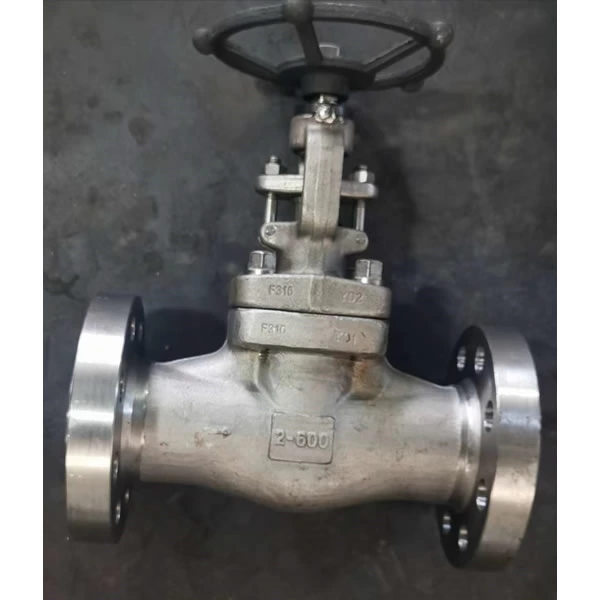

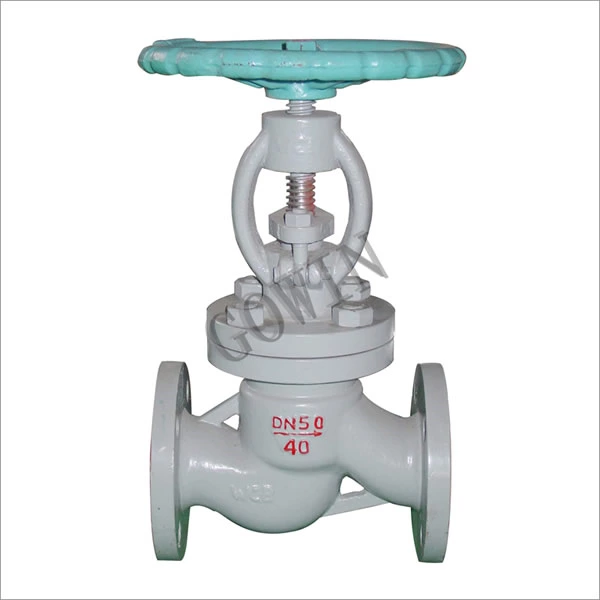

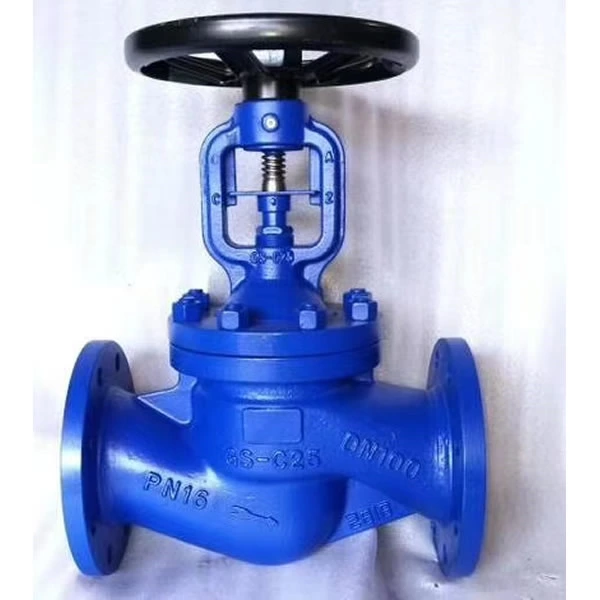

General Globe Valve
- Standard:
- ASME, API, JIS, BS, DIN, GB, JB, HG
- Nominal diameter:
- 1/2"-60" DN15-DN2000
- Pressure:
- 150LB-2500LB 0.6Mpa-42.0Mpa
- Material:
- WCB, A105, LCB, LC3, CF8, CF8M, CF3, CF3M, CF8C, CF10M, CG8M, WC1, WC6, WC9, F11 and etc.
- End Connection:
- RF, RTJ, BW, THR, SW
- Temperature:
- -196℃-650℃
- Medium:
- Water, Oil, Gas
- Packing:
- uitable packing for Sea/Air Transport
- Payment:
- T/T, L/C
- Operation:
- Lever, Wrench, gear, Electric、Pneumatic actuator、Hydraulic, etc.
Design Features
Design standard as per: BS1873、GB/T 12235.
Generally, lift is just 1/4 of the valve seat port, ensuring a short Opening/closing time.
Only one sealing face exists on the valve body and disc.
For large size valves will be designed with main disc and vice disc type, and medium flow from up disc to down disc.
The valve is designed with a back seat sealing structure.
Product Range
Body material: carbon steel, stainless steel, alloy steel, exotics.
Nominal diameter: 1/2"～24"（DN15~DN600）
Pressure range:Class150～2500（PN10~PN420）
End connection: RF, RTJ, BW
Working temperature:-29℃～560℃
Operation: hand wheel, gear box, electric, etc.
