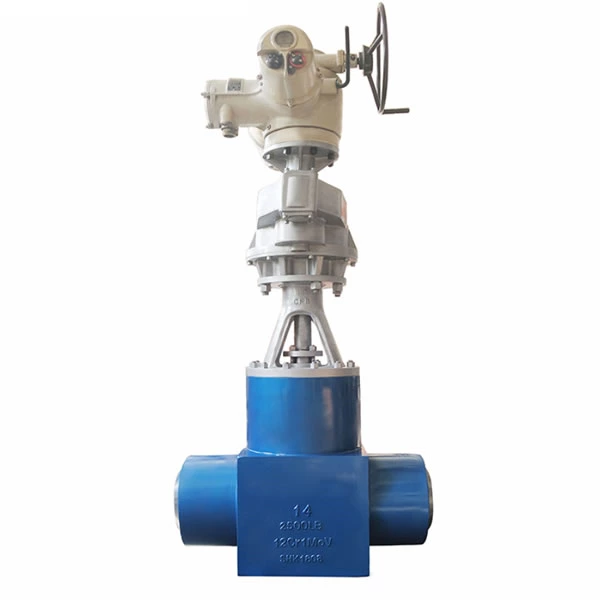

Water Power Station Gate Valve
- Standard:
- ASME, API, JIS, BS, DIN, GB, JB, HG
- Nominal diameter:
- 1/2"-60" DN15-DN2000
- Pressure:
- 150LB-2500LB 0.6Mpa-42.0Mpa
- Material:
- WCB, A105, LCB, LC3, CF8, CF8M, CF3, CF3M, CF8C, CF10M, CG8M, WC1, WC6, WC9, F11 and etc.
- End Connection:
- RF, RTJ, BW, THR, SW
- Temperature:
- -196℃-650℃
- Medium:
- Water, Oil, Gas
- Packing:
- uitable packing for Sea/Air Transport
- Payment:
- T/T, L/C
- Operation:
- Lever, Wrench, gear, Electric、Pneumatic actuator、Hydraulic, etc.
Design Features
Basic structure with good tightness, small torque and reliability;
Floating seats.
Low emission packing;
Drive stem horizontal installed;
Anti-blowout stem design;
Valve seat function can be controlled.
Product Range
Body material: carbon steel, stainless steel, alloy steel, Duplex and Super Duplex.
Nominal diameter:16"～60"
Pressure range:Class150～1500
End connection: RF, RTJ, BW
Working temperature:-29℃～+200℃
Operation: electric, pneumatic actuator, electro-hydraulic actuator , etc.
