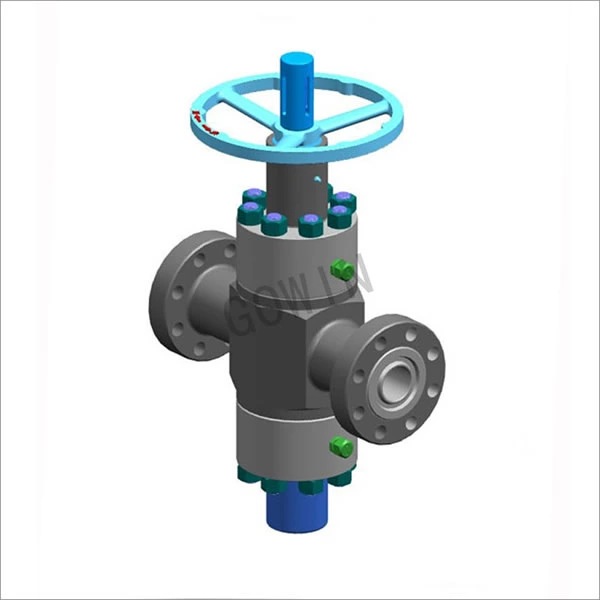

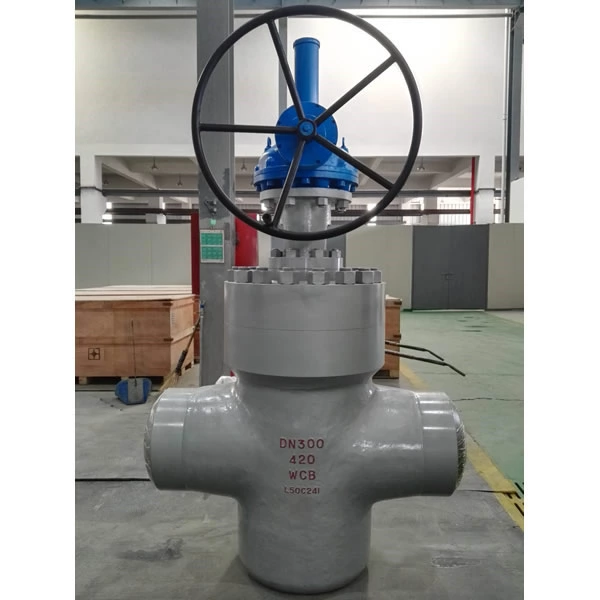

Slab Gate Valve
- Standard:
- ASME, API, JIS, BS, DIN, GB, JB, HG
- Nominal diameter:
- 1/2"-60" DN15-DN2000
- Pressure:
- 150LB-2500LB 0.6Mpa-42.0Mpa
- Material:
- WCB, A105, LCB, LC3, CF8, CF8M, CF3, CF3M, CF8C, CF10M, CG8M, WC1, WC6, WC9, F11 and etc.
- End Connection:
- RF, RTJ, BW, THR, SW
- Temperature:
- -196℃-650℃
- Medium:
- Water, Oil, Gas
- Packing:
- uitable packing for Sea/Air Transport
- Payment:
- T/T, L/C
- Operation:
- Lever, Wrench, gear, Electric、Pneumatic actuator、Hydraulic, etc.
Design Features
Design standard as per: API 6D、ASME B16.34、GB/T 19672
Product Range
Body material: carbon steel, stainless steel,
Nominal diameter: 2"～60"
Pressure range:Class150～2500
End connection: RF, RTJ, BW
Working temperature:-46℃～+200℃
Operation : hand wheel, gear box, electric, pneumatic actuator, electro-hydraulic actuator , etc.
Design Features
Design standard as per: API 6D、ASME B16.34、GB/T 19672
The valve disc and valve seat seal are repeatedly treated by special processes, and protected by multiple seals, and featured with anti-corrosion, penetration-proof, anti-abrasion and long service life;
Valve seat is designed with hard-soft double seal, having reliable tightness;
With a full bore design, both the coefficient of flow resistance and the pressure loss are very small;
Product Range
Body material: carbon steel, stainless steel,
Nominal diameter: 2"～60"
Pressure range:Class150～2500
End connection: RF, RTJ, BW
Working temperature:-46℃～+200℃
Operation : hand wheel, gear box, electric, pneumatic actuator, electro-hydraulic actuator , etc.
