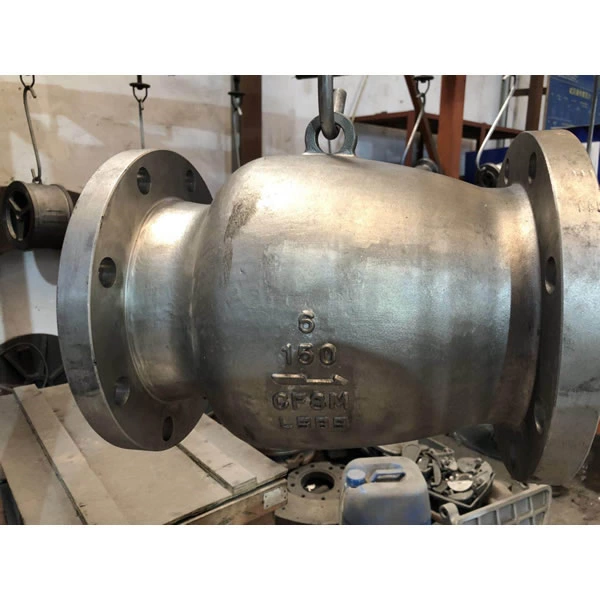

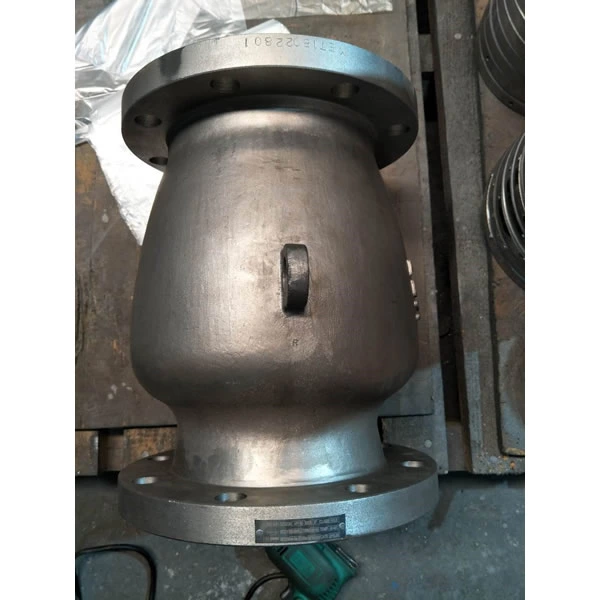

Nozzle Check Valve
- Standard:
- ASME, API, JIS, BS, DIN, GB, JB, HG
- Nominal diameter:
- 1/2"-60" DN15-DN2000
- Pressure:
- 150LB-2500LB 0.6Mpa-42.0Mpa
- Material:
- WCB, A105, LCB, LC3, CF8, CF8M, CF3, CF3M, CF8C, CF10M, CG8M, WC1, WC6, WC9, F11 and etc.
- End Connection:
- RF, RTJ, BW, THR, SW
- Temperature:
- -196℃-650℃
- Medium:
- Water, Oil, Gas
- Packing:
- uitable packing for Sea/Air Transport
- Payment:
- T/T, L/C
- Operation:
- Lever, Wrench, gear, Electric、Pneumatic actuator、Hydraulic, etc.

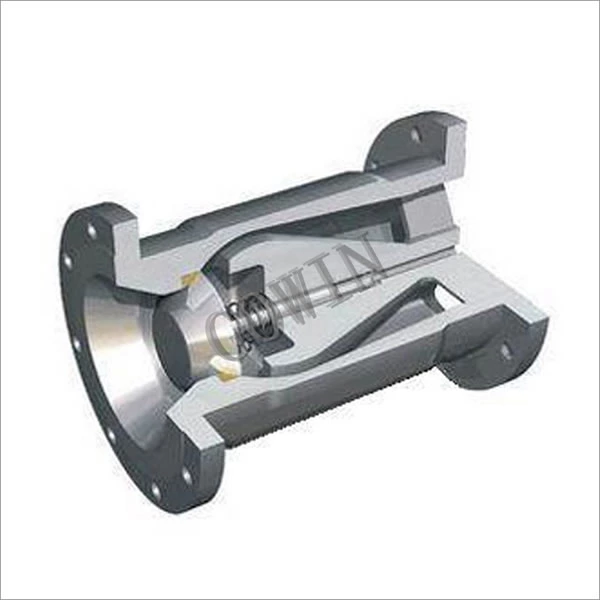

Design Features
Design standard as per: API 6D,ASME B16.34, GB/T 12224.
Compact and reasonable product structure, reliable tightness and good performance;
Small volume and lightweight;
Streamlined channel.
Rapid closing and flexible actions of the valve clack
Small closing impact, water hammer is not liable to be generated;
Smooth fluid passageway and small fluid resistance;
Product Range
Body material: carbon steel, stainless steel, alloy steel, exotics
Nominal diameter:1/2"～24"（DN15~DN600）
Pressure range: Class150～600（PN10~PN100）
End connection: RF, RTJ
Working temperature:-29℃～+425℃
