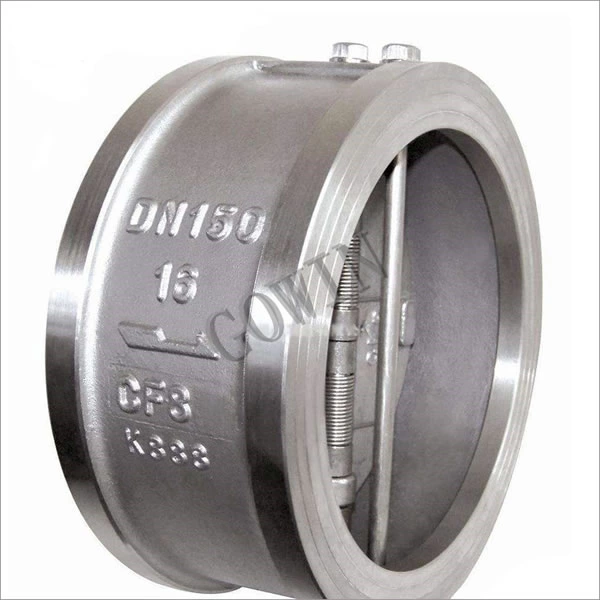

Dual-plate Check Valve-CF8
- Standard:
- ASME, API, JIS, BS, DIN, GB, JB, HG
- Nominal diameter:
- 1/2"-60" DN15-DN2000
- Pressure:
- 150LB-2500LB 0.6Mpa-42.0Mpa
- Material:
- WCB, A105, LCB, LC3, CF8, CF8M, CF3, CF3M, CF8C, CF10M, CG8M, WC1, WC6, WC9, F11 and etc.
- End Connection:
- RF, RTJ, BW, THR, SW
- Temperature:
- -196℃-650℃
- Medium:
- Water, Oil, Gas
- Packing:
- uitable packing for Sea/Air Transport
- Payment:
- T/T, L/C
- Operation:
- Lever, Wrench, gear, Electric、Pneumatic actuator、Hydraulic, etc.
Design Features
Design standard as per: BS1868,ASME B16.34, GB/T 12236.
Compact and reasonable product structure, reliable tightness and good performance;
Smooth fluid passageway and small fluid resistance;
Swing type disc.
Can be designed with a Damping Cylinder.
Rapid closing and flexible actions of the valve disc .
Small closing impact, water hammer is not liable to be generated.
Smooth fluid passageway and small fluid resistance.
Product Range
Body material: carbon steel, stainless steel, alloy steel
Nominal diameter: 1/2"～60"（DN15~DN1500）
Pressure range:Class150～2500（PN10~PN420）
End connection: RF, RTJ, BW
Working temperature:-196℃～+560℃
