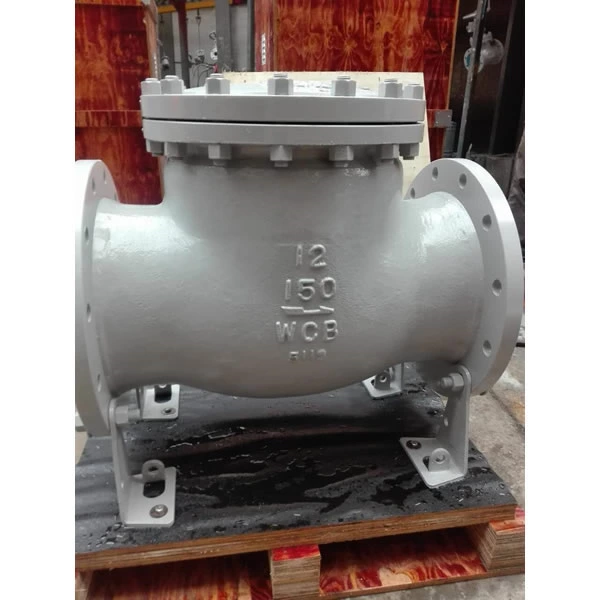

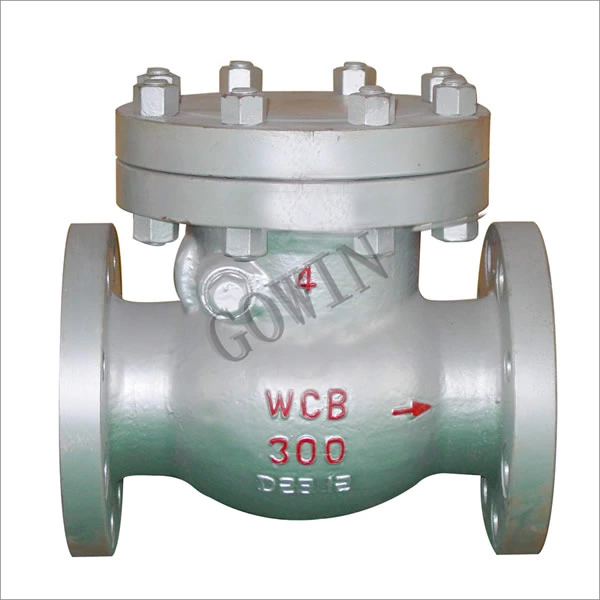

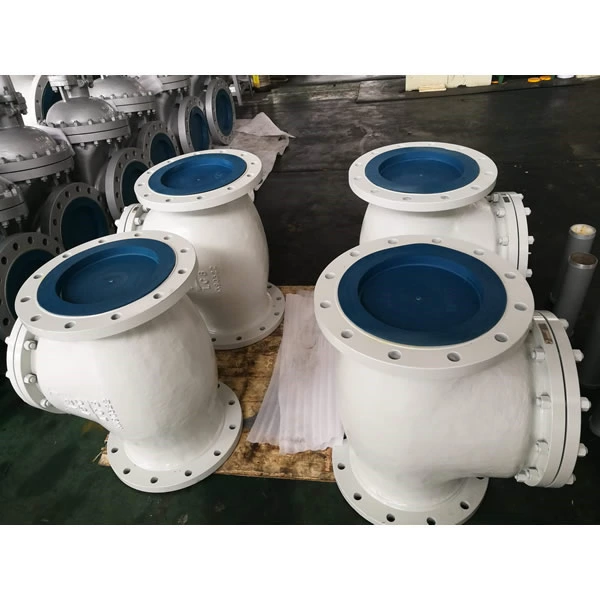

API Cast Steel Swing Check Valve

Standard:
ASME, API, JIS, BS, DIN, GB, JB, HG
Nominal diameter:
1/2"-60" DN15-DN2000
Pressure:
150LB-2500LB 0.6Mpa-42.0Mpa
Material:
WCB, A105, LCB, LC3, CF8, CF8M, CF3, CF3M, CF8C, CF10M, CG8M, WC1, WC6, WC9, F11 and etc.
End Connection:
RF, RTJ, BW, THR, SW
Temperature:
-196℃-650℃
Medium:
Water, Oil, Gas
Packing:
uitable packing for Sea/Air Transport
Payment:
T/T, L/C
Operation:
Lever, Wrench, gear, Electric、Pneumatic actuator、Hydraulic, etc.

Design Features

Design standard as per: BS1868,ASME B16.34, GB/T 12236.

Compact and reasonable product structure, reliable tightness and good performance;

Smooth fluid passageway and small fluid resistance;

Swing type disc.

Can be designed with a Damping Cylinder.

Rapid closing and flexible actions of the valve disc .

Small closing impact, water hammer is not liable to be generated.

Smooth fluid passageway and small fluid resistance.

Product Range

Body material: carbon steel, stainless steel, alloy steel

Nominal diameter: 1/2"~60"(DN15~DN1500)

Pressure range:Class150~2500(PN10~PN420)

End connection: RF, RTJ, BW

Working temperature:-196℃~+560℃
