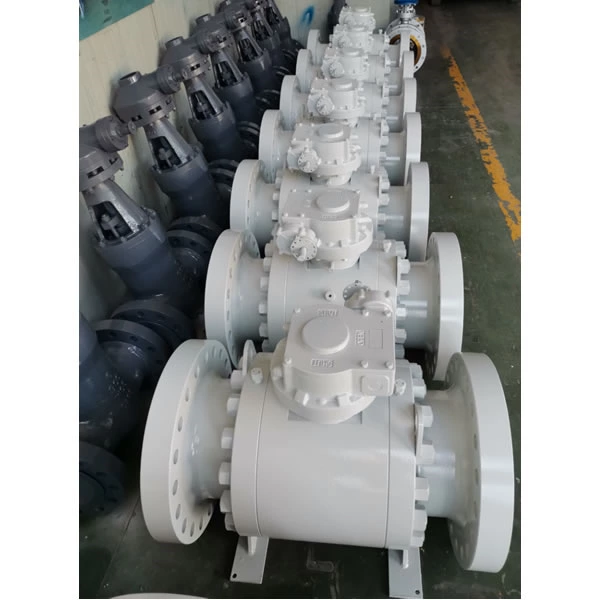

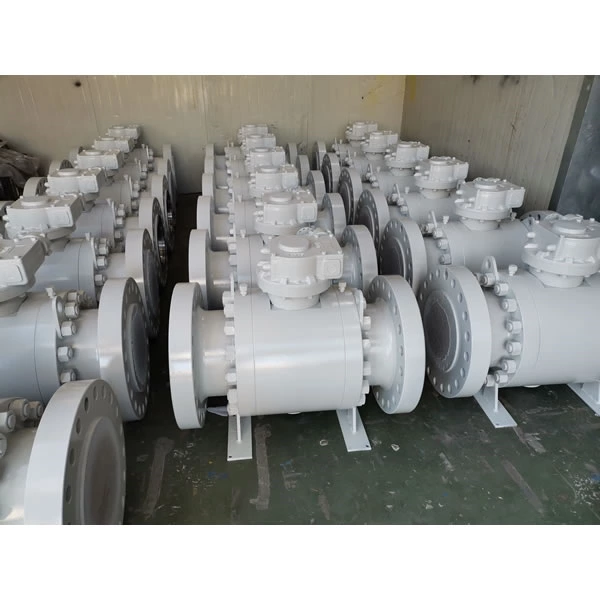

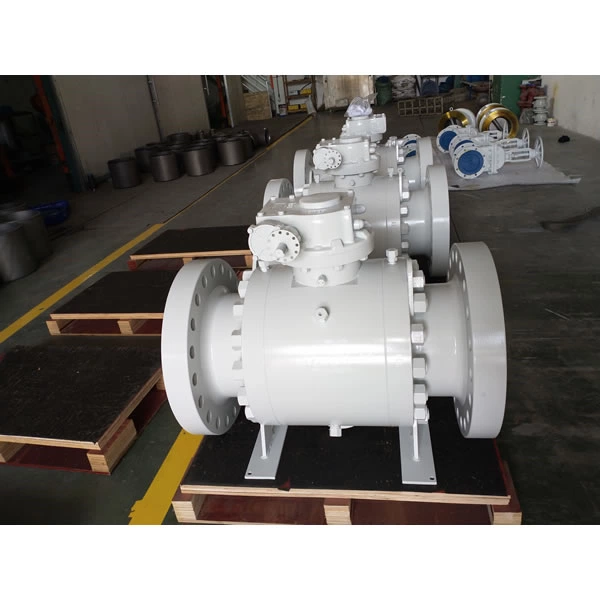

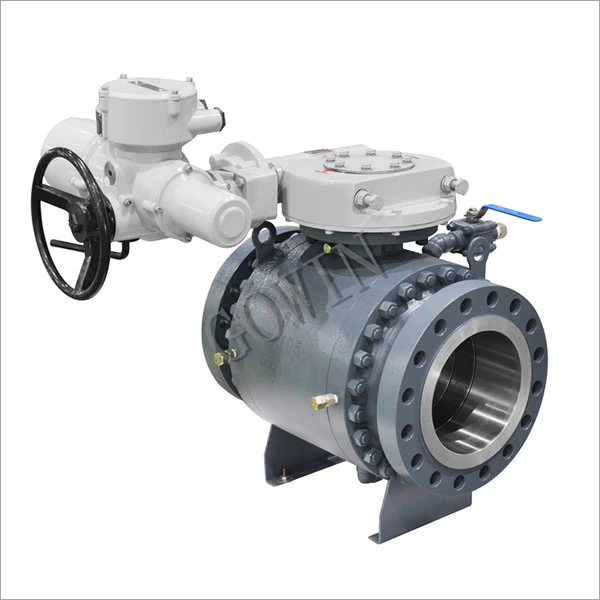

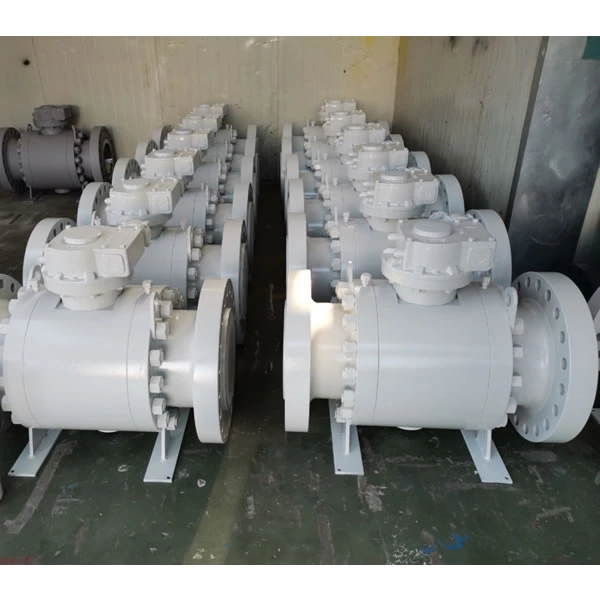

Metal-to-metal Seat Ball Valve
- Standard:
- ASME, API, JIS, BS, DIN, GB, JB, HG
- Nominal diameter:
- 1/2"-60" DN15-DN2000
- Pressure:
- 150LB-2500LB 0.6Mpa-42.0Mpa
- Material:
- WCB, A105, LCB, LC3, CF8, CF8M, CF3, CF3M, CF8C, CF10M, CG8M, WC1, WC6, WC9, F11 and etc.
- End Connection:
- RF, RTJ, BW, THR, SW
- Temperature:
- -196℃-650℃
- Medium:
- Water, Oil, Gas
- Packing:
- uitable packing for Sea/Air Transport
- Payment:
- T/T, L/C
- Operation:
- Lever, Wrench, gear, Electric、Pneumatic actuator、Hydraulic, etc.
Design Features
These valves have a metal to metal sealing.
Double block and bleed;
Cavity pressure self-relief;
Blowout-proof stem;
Seats are sprayed with Tungsten Carbide HVOF(High Velocity Oxy Fuel) or overlay cladding coated with metal to metal contact between seats and ball. Hardness of coating surface: up to HRC68～ 72;
Bonding strength of coating: ≥10000Psi;
Thickness of coating: 0.3 - 0.5 mm;
Product Range
Body material: carbon steel, stainless steel, alloy steel, exotics.
Nominal diameter:2"～24"
Pressure range:Class150～2500
End connection: RF, RTJ, BW
Working temperature:-50℃～+560℃
Operation: wrench, worm gear, electric, pneumatic actuator, gas over oil actuator, electro-hydraulic actuator , etc.
