Ball Valves

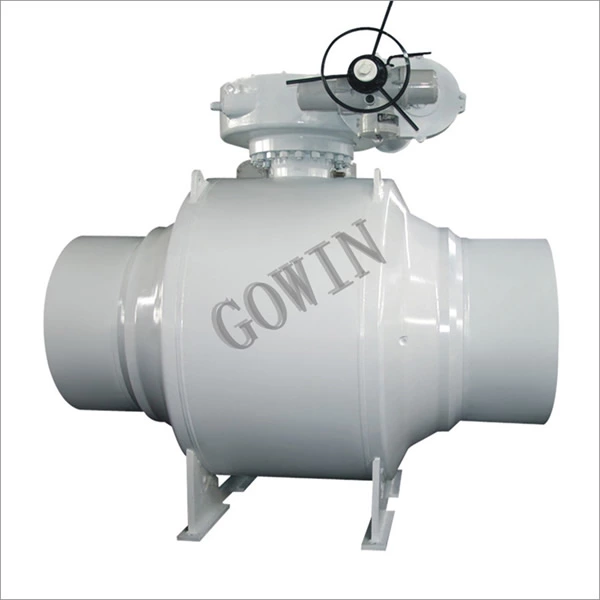

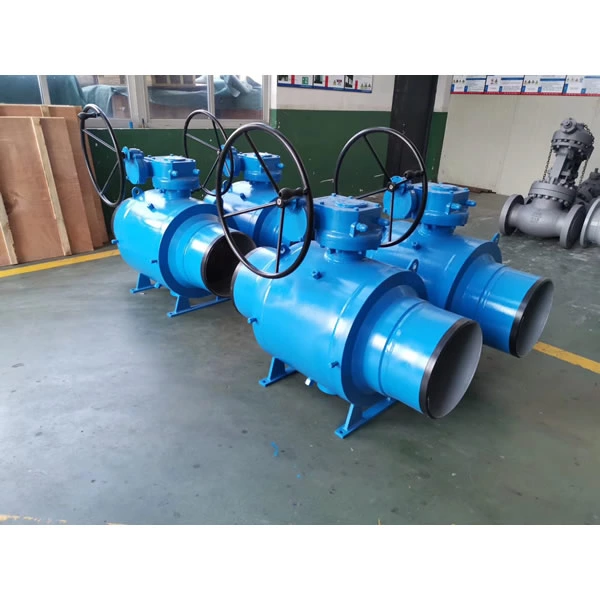

Gear Operaed Fully Welded Ball Valve

Standard:
ASME, API, JIS, BS, DIN, GB, JB, HG
Nominal diameter:
1/2"-60" DN15-DN2000
Pressure:
150LB-2500LB 0.6Mpa-42.0Mpa
Material:
WCB, A105, LCB, LC3, CF8, CF8M, CF3, CF3M, CF8C, CF10M, CG8M, WC1, WC6, WC9, F11 and etc.
End Connection:
RF, RTJ, BW, THR, SW
Temperature:
-196℃-650℃
Medium:
Water, Oil, Gas
Packing:
uitable packing for Sea/Air Transport
Payment:
T/T, L/C
Operation:
Lever, Wrench, gear, Electric、Pneumatic actuator、Hydraulic, etc.

MAIN FEATURES:

The fully-welded ball valve adopts forged material, welded body, instead of bolted that design aviod any potential leakage from body and that mostly used in underground installation.

The forged body with regular structure and even thickness can avoid shrinkage cavities, pin holes, cracks, sand holes and other defects occurring to casting body valves.

Fully-welded ball valves can be spherical and cylindrical type. Usually the spherical type has only one welding seam on the body, the cylindrical type has two welding seam on the body.

Design Features

The ball valve are designed in accordance with ISO14313、API 6D;

Simple structure with good tightness and small torque;

With a fully-welded valve body, full bore and the minimum flow resistance (zero actually);

Emergency sealant injection;

Cavity pressure self relief;

Low emission packing;

Fire safe, anti-static and anti-blowout stem design;

Valve seat function DBB, DIB-1, DIB-2;

Optional extended bonnet;

Optional overlay stainless steel on body to seat surface and/or gasket container surface;

Be able to be used for underground installation without corrosion of interior parts, therefore, it is the best application for petroleum and natural gas line systems;

Service life up to 30 years.

Product Range

Body material: low-temperature carbon steel, carbon steel

Nominal diameter:2"~36"(DN50~DN900)

Pressure range:Class150~2500(PN10~PN420)

End connection: RF, RTJ, BW

Working temperature:-50℃~+200℃

Operation: worm gear, electric , pneumatic , gas over oil actuator and electro-hydraulic actuator.
