Ball Valves

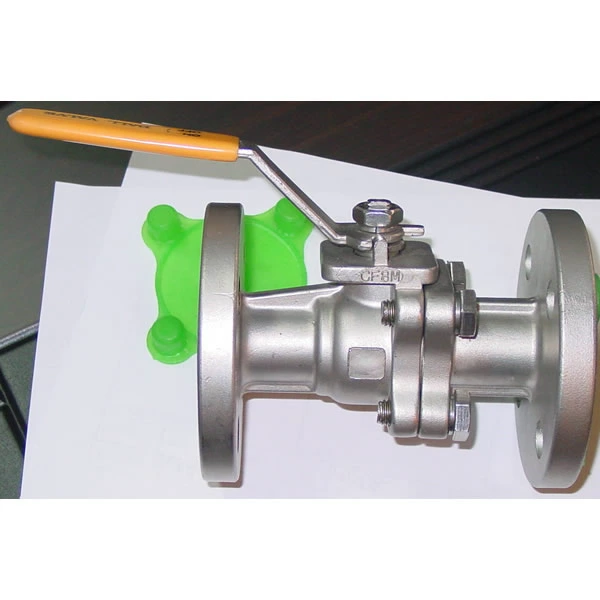

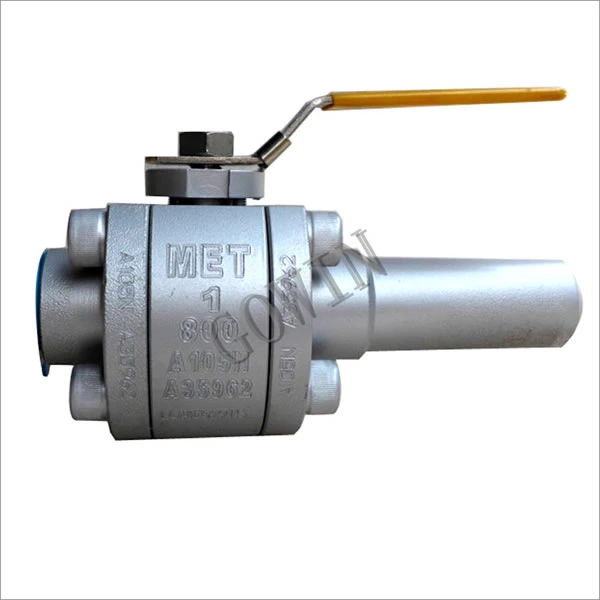

Floating Ball Valve

Standard:
ASME, API, JIS, BS, DIN, GB, JB, HG
Nominal diameter:
1/2"-60" DN15-DN2000
Pressure:
150LB-2500LB 0.6Mpa-42.0Mpa
Material:
WCB, A105, LCB, LC3, CF8, CF8M, CF3, CF3M, CF8C, CF10M, CG8M, WC1, WC6, WC9, F11 and etc.
End Connection:
RF, RTJ, BW, THR, SW
Temperature:
-196℃-650℃
Medium:
Water, Oil, Gas
Packing:
uitable packing for Sea/Air Transport
Payment:
T/T, L/C
Operation:
Lever, Wrench, gear, Electric、Pneumatic actuator、Hydraulic, etc.

MAIN FEATURES:

Principle of the cast steel floating ball valve: This kind of ball valve has a floating ball supported by two valve seats. Under the medium pressure effect, the ball itself so as to be pressed onto the seat seal ring at the outlet, guaranteeing tightness at the outlet.

The floating ball valve is mainly divided into such two structures as the single-body type and split-body type float ball valve structures

Design Features

The ball valve are designed in accordance with ISO17292、API 608、BS 5351、GB/T 12237;

Simple structure with good tightness and small torque;

Have reduce bore type and full bore type with the minimum flow resistance (zero actually);

Low emission packing;

Fire safe, anti-static and anti-blowout stem design;

Optional locking device

Optional ISO 5211 top flange

Product Range

Body material: carbon steel, stainless steel, alloy steel

Nominal diameter:1/2"~6"(DN15~DN150)

End Connection: RF, BW, THR

Pressure range: Class150 – 300(PN16~PN40)

Working temperature: -50℃ - +400℃

Operation : wrench, worm gear, electric, etc
