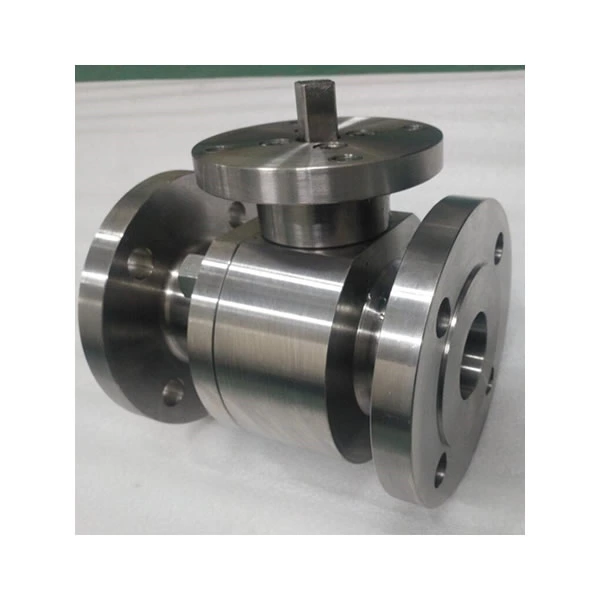

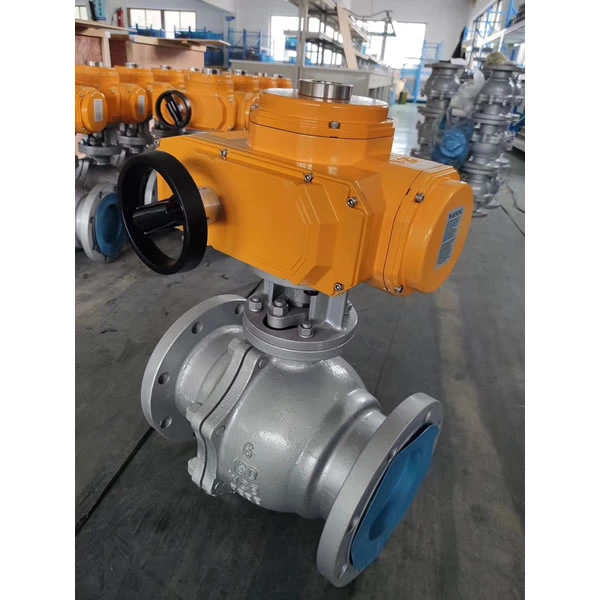

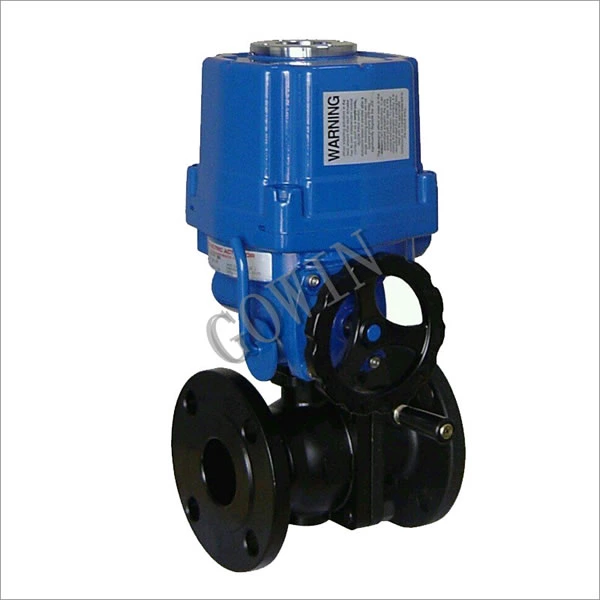

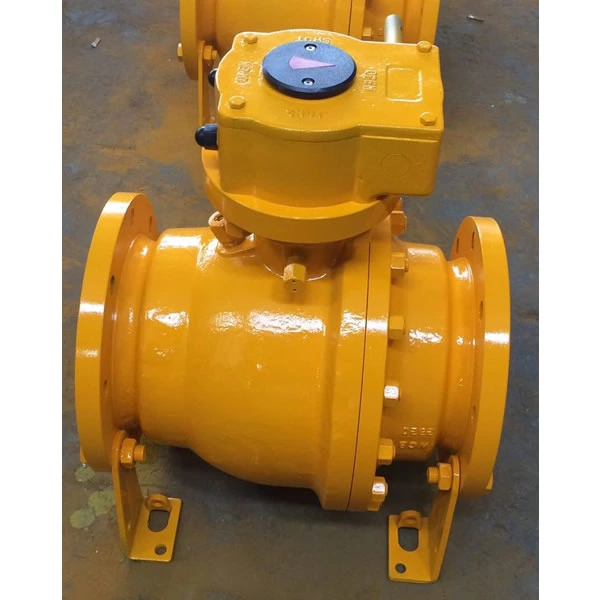

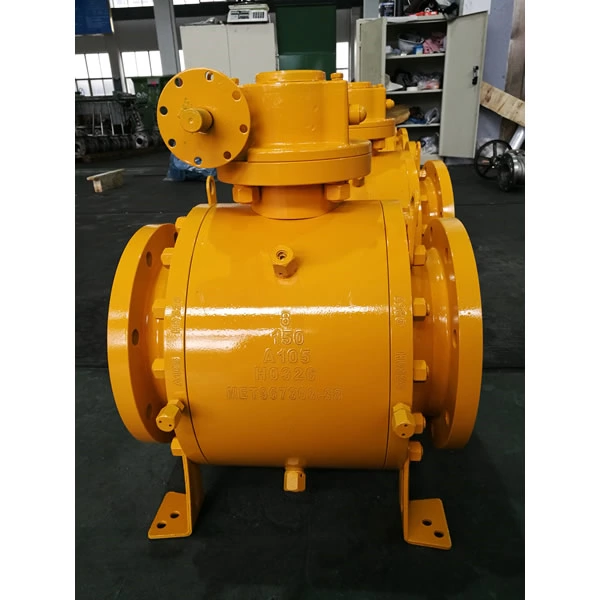

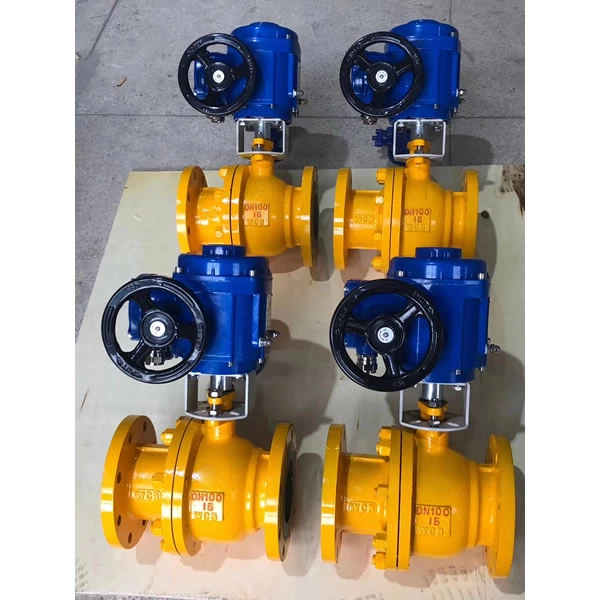

Cast Steel Floating Ball Valve
- Standard:
- ASME, API, JIS, BS, DIN, GB, JB, HG
- Nominal diameter:
- 1/2"-60" DN15-DN2000
- Pressure:
- 150LB-2500LB 0.6Mpa-42.0Mpa
- Material:
- WCB, A105, LCB, LC3, CF8, CF8M, CF3, CF3M, CF8C, CF10M, CG8M, WC1, WC6, WC9, F11 and etc.
- End Connection:
- RF, RTJ, BW, THR, SW
- Temperature:
- -196℃-650℃
- Medium:
- Water, Oil, Gas
- Packing:
- uitable packing for Sea/Air Transport
- Payment:
- T/T, L/C
- Operation:
- Lever, Wrench, gear, Electric、Pneumatic actuator、Hydraulic, etc.
Design Features
The ball valve is designed in accordance with ISO17292、API 608、BS 5351、GB/T 12237;
It’s a basic design with good tightness and small torque.
Reduced bore type and full bore type with a minimum flow resistance (zero actually).
Low emission packing.
Fire safe, anti-static and anti-blowout stem design.
Optional locking device.
Optional ISO 5211 top flange.
Product Range
Body material: carbon steel, stainless steel, alloy steel, exotics.
Nominal diameter:1/2"～6"（DN15~DN150）
End Connection: RF, BW, THR
Pressure range: Class150 – 300（PN16~PN40）
Working temperature: -46℃ - +200℃
Operation: wrench, worm gear, electric, etc
